FW Murphy – DVU2115 #55700309

Price: $844.73
(as of Mar 01, 2026 23:15:21 UTC – Details)

Buy FW Murphy – DVU2115 #55700309 online from amazon or ebay or walmart FW Murphy – DVU2115 #55700309

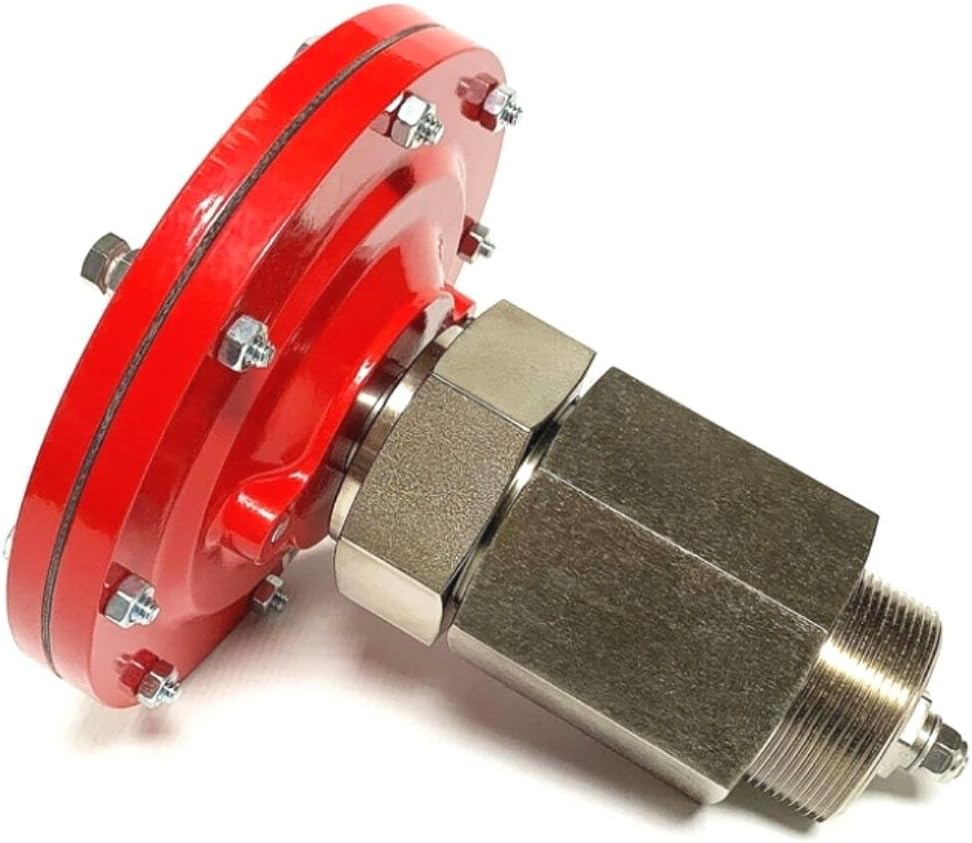

DVU2115: Dump Valve; 2npt Inlet; 1 Npt Outlet; 15mm Trim Size; 1500psi. (55700309)
The DVU Series features pneumatically controlled dump valves. The valves open and close automatically by pneumatic control from a FW Murphy level controller and dump valve operator.
Diaphragm actuated; a key benefit of this design is a hex union that provides the ability to replace the seat without removing the valve from piping.
The DVU Series is compatible with FW Murphy level controllers. They feature a soft seat valve and manual valve operator. Designed for gas compressor scrubbers, the DVU Series can be used to dump any liquids compatible with its materials of construction
Features:
For separators/scrubbers to 15
00 psi (10.3 Mpa, 103 bar) maximum working pressure 2NPT inlet, 1 NPT outlet Hex Union Allows Plug and Seat Replacement Without Piping Rem
Operates on 30–70psi (207–483 kPa) [2.07–4.83 bar] Control Pressure
Compatible With Murphy Level Controls
Manual Valve Operator
The DVU Series features pneumatically controlled dump valves. The valves open and close automatically by pneumatic control from a FW Murphy level controller and dump valve operator.
Diaphragm actuated; a key benefit of this design is a hex union that provides the ability to replace the seat without removing the valve from piping.
The DVU Series is compatible with FW Murphy level controllers. They feature a soft seat valve and manual valve operator. Designed for gas compressor scrubbers, the DVU Series can be used to dump any liquids compatible with its materials of construction
